Description
The MAGIC AC1 XIP Audio Codecs offer a LAN-, an ISDN S0 and an X.21 interface. The systems have two analog audio inputs/outputs, which can also be used as a digital AES3 interface. In the standard version, the MAGIC AC1 XIP audio codec supports the G.711 (3.1-kHz), G.722 (7-kHz) and ISO/MPEG Layer 2 coding algorithms as well as the PCM transmission mode. Further coding algorithms such as ISO/MPEG Layer 3, Standard apt-X, Enhanced apt-X and AAC-LD can be activated optionally.
Versions

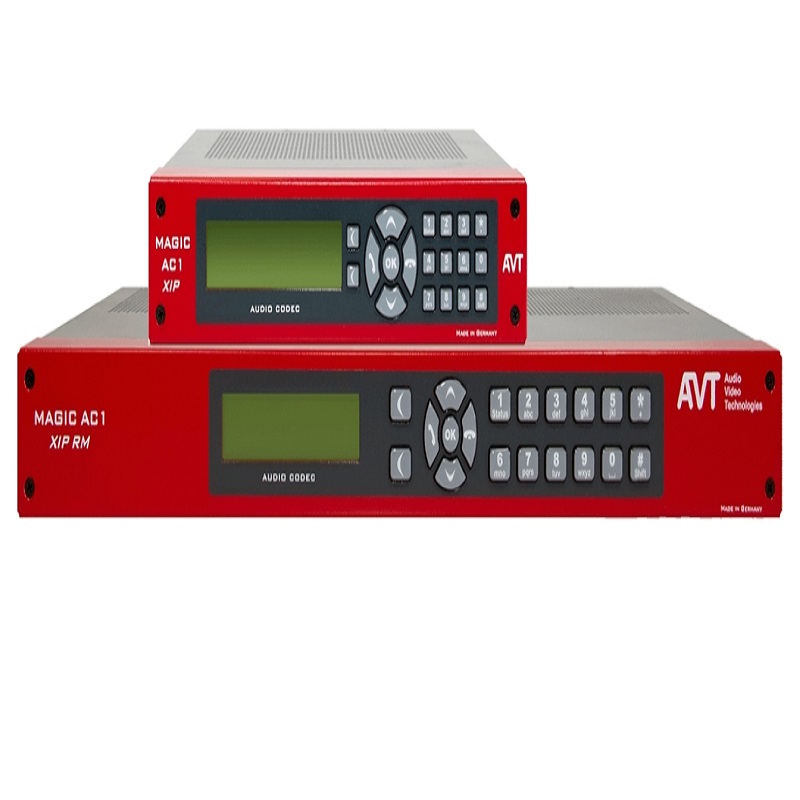

Two versions of the MAGIC AC1 XIP are available. The compact MAGIC AC1 XIP Audio Codec with external power supply is a powerful product for mobile applications, but can also be used as a space-saving solution in the studio. The 19″ version MAGIC AC1 XIP RM has an integrated power supply, which in some cases is preferred for studio installations. In addition, the system can be equipped with a second LAN interface. In this way, audio transmission and control can be separated from each other. The functions are the same for both versions.
Both versions of the system are also available as pure decoders – in case a unidirectional transmission does not require a codec on the opposite side.
