Description
The LX-24s totally modular design lets you configure it exactly as you like. And you can hot-swap any module at any time. There are no electronics in the pan below the modules in the event one needs to be replaced, simply reassign the audio to another module and youre up and running in seconds. Pop in a replacement module at your convenience. Its that simple.
The LX-24 can be anywhere you need. Its already part of the WheatNet-IP Intelligent Network the IP88E Mix Engine BLADE provides audio mix functionality and can be anyplace on the network. Additional BLADEs can be added for inputs and outputs in a variety of digital and analog formats, and this I/O can be shared with other consoles and devices, such as AirAura and Aura8-IP, throughout the Intelligent Network. The LX-24 is an intelligent surface that can store and recall all your settings. It even remembers settings if you have to hot-swap a module. Snapshots of the LX-24s configuration can be saved and recalled at the touch of a button, making setup for different shows or dayparts a snap.

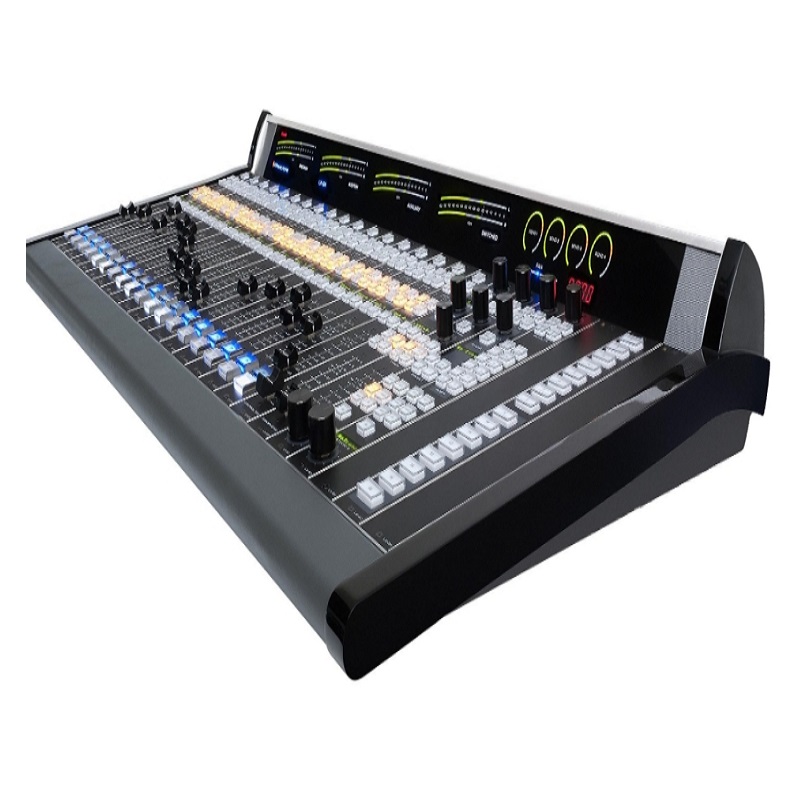

The LX-24 modular control surface has a low-profile, table-top design that allows it to fit into almost any studio situation. The meterbridge features up to four sets of bright, high resolution LED meters, as well as circular LED displays for auxiliary send levels and pan control. A digital count-up/count-down timer is also included.
Each input channel can be assigned to four stereo busses, plus four pre/post-selectable aux sends, a stereo CUE bus, four mix-minuses and the panels own bus-minus. An LED source name display, an A/B source selector, and two programmable soft buttons are included and a SET button provides access to assignable controls in the master section.
Control room and headphone outputs with level control and source selection are provided, as well as two independent studio monitor outputs. Stereo CUE speakers are built into the meterbridge. Headphones and CUE are delivered to the surface right from the IP network, so theres no tying up BLADE outputs for the headphone and cue audio.
On-board VGA and USB-Mouse connectors allow a monitor and mouse to be connected to the console for configuration and advanced console functions.
