Description

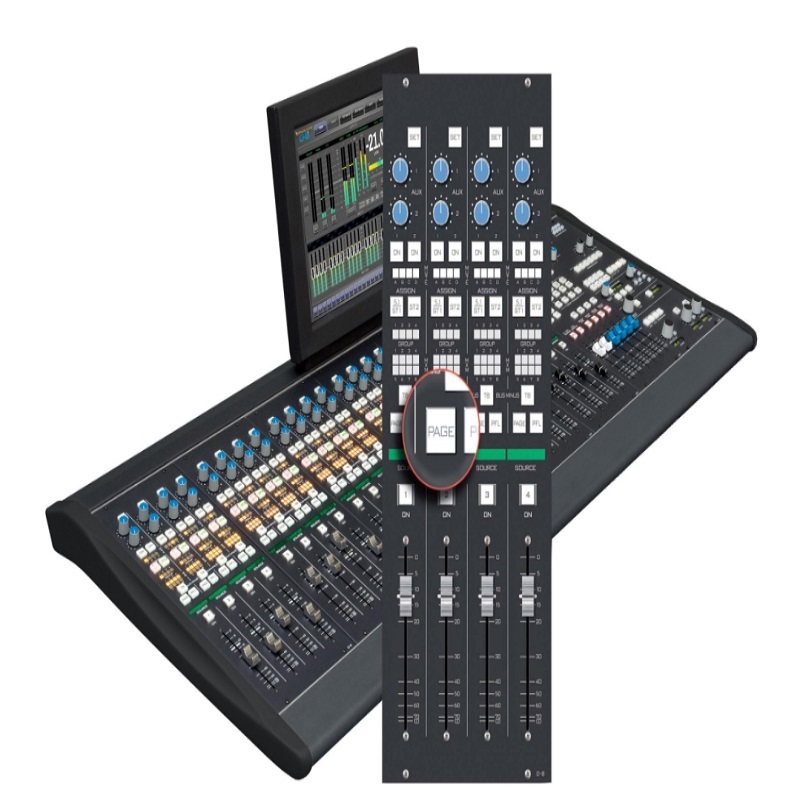

D-8EX packs a lot of mixing power into a small space, making it an ideal companion in your remote truck or secondary on-air/production room. It features a PAGE function for doubling the number of channels in the same footprint.
D-8EX packs a lot of mixing power into a small space, making it an ideal companion in your remote truck or secondary on-air/production room.
With the D-8EX, you get 24 motorized-fader input channels, expandable to twice that number WITHOUT increasing the consoles footprint. A PAGE button on each channel permits you to access a second channel with full, immediate recall of that channels settings, bringing the total number of available channels to 48. It also features true surround, 4 sub-masters, 2 main buses, 2 aux sends, and extensive processing (4-band parametric EQ, filters, compressor/limiter).
This console also includes an intuitive touchscreen for extensive metering and control of lesser used, set-and-forget controls.
Like all Wheatstone television consoles, the D-8EX is a control surface; all audio I/O is housed in the Wheatstone Gibraltar IP Mix Engine or Gibraltar Network rackmount router/mixer.
Features
24 motorized input faders (with access to 48-channels of audio via the PAGE button)
IP networked console
Main busses: one 5.1 program, one stereo program
Submasters: 4 stereo
Mix-Minus: 8 mono with automatic confidence feed switching
Loudness Metering with large LKFS readout and momentary, short-term, peak reading and program duration level history display
Auxiliary sends: 2 stereo (direct rotary control from fader channel)
Bus minus: direct mix-minus feed from every input fader channel
Outputs from all busses and bus-minus are configured within the Network router matrix and can be analog and/or digital, or not fitted
One 5.1 (audio booth), two stereo studio feeds
Phase reverse
Surround pan / balance control and blend
Stereo mode control
4-band, parametric equalizer with variable high & low pass filter
Compressor / Limiter
Expander / Gate
Variable delay on all input faders
